Chef Bases
Chef Bases

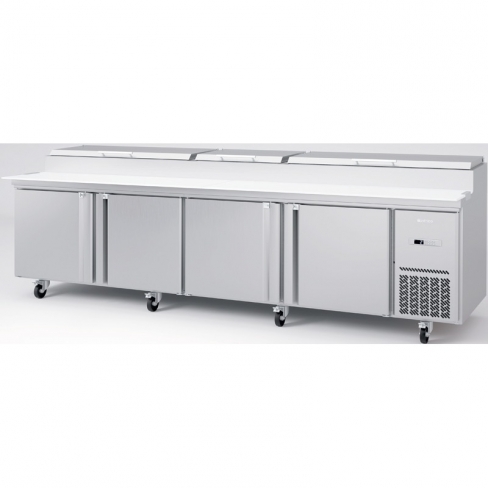

MSG96

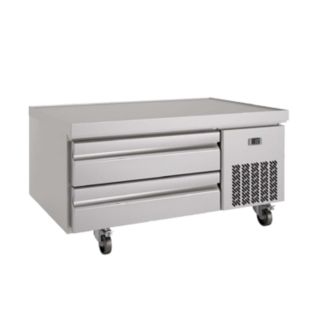

MSG48
INFRICO is a leading manufacturer of commercial refrigeration equipment with advanced technology and certified quality are the guarantees that underlies Infrico’s commitment to innovation.
Standard features:
- Exterior: Front and Sides are AISI 430 stainless steel and AISI 304 stainless steel top. Drip resistant “V” edge protects against spills.
- Interior: AISI 430 stainless steel
- Insulation: CFC-Free polyurethane insulation, entire cabinet structure is foamed-in place using a high density polyurethane insulation. Low GWP & Zero ODP effect.
- Drawers: Each drawer accommodates two or three full size 12″x20″ pans, drawers with full extension sliding rails for complete opening, drawers with integrated handle, heavy-duty stainless steel drawer slides designed to hold up to 440 lbs.
- Refrigeration: Digital temperature controller with automatic defrost system, drain pan with condensate heater , extractable condensing unit for easy service, evaporator coil coated with anti-corrosion material 100% polyester, forced air refrigeration system, refrigerant gas R134a
- Electrical: Cord and Nema 5-15 plug
- Electrical connection: 115V/1ph/60Hz
Optional features:
- Set of 6″ legs, height adjustable from 5″ to 8″
Model Chart:
| Models | Dimensions | Doors | Temperature | Ft³ | Hp | Amps (115V) | Lbs |
| MSG36 | 36.625×32.5×26.25 | 2 | 33°F/38°F | 5.2 | 1/5 | 4.8 | 230 |
| MSG48 | 48.625×32.5×26.25 | 2 | 33°F/38°F | 6.8 | 1/5 | 4.8 | 280 |
| MSG52 | 53.25×32.5×26.25 | 2 | 33°F/38°F | 9.9 | 1/3 | 6.5 | 330 |
| MSG72 | 72.625×32.5×26.25 | 4 | 33°F/38°F | 14.3 | 1/3 | 6.7 | 440 |
| MSG96 | 97×32.5×26.25 | 4 | 33°F/38°F | 20.6 | 1/3 | 6.7 | 507 |
| MSG110 | 110.625×32.5×26.25 | 6 | 33°F/38°F | 22 | 1/3 | 6.9 | 510 |
